Cloning on TPX3/4 - online



NOTE:

PC should have access to internet.





•set TPX3/4/CN3 decoder to Internet (Setup).



tph_cloner3



•click Write.



tpx4 2

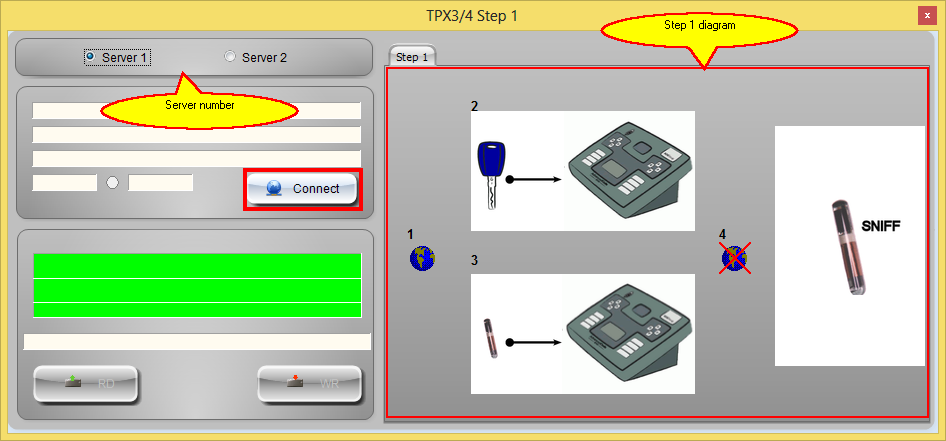

•Click Connect to connect to internet server and start procedure.

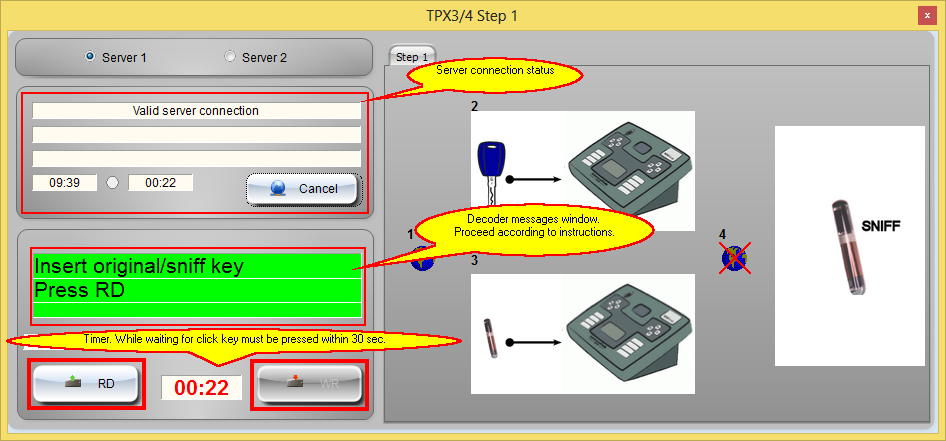

tpx4 21





Proceed according to instructions from decoder messages window.



▪Read original key.

clone46_0        RD

clone46_01



▪Write TPX3/4 for sniff.

clone46_02        WR

clone46_03        WR

clone46_04

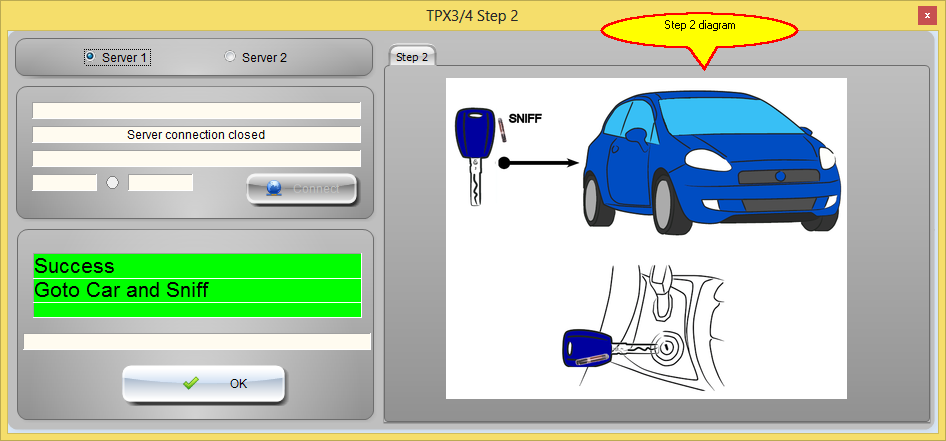

tpx4 4



•Perform operations in the car - turn ingition on and off 3-5 times (wait for 2 seconds in each cycle)  - use both original and sniff.
•Click OK



tpx4 5



•Click Connect to connect to internet server and start decoding.



Proceed according to instructions from decoder messages window.



▪Read sniff.

clone46_05        RD

clone46_07



▪Read original key.

clone46_08        WR



▪Wait while processing.

clone46_09

clone46_10



▪Write destination TPX3/4 transponder.

clone46_11        WR

clone46_12





NOTE:

If decoder will not be able to find crypto key repeat all steps again. Its important to repeat decoding with different sniff data.
