Cloning on TPX3/4/CN3 - TPH cloner


connect TPH (CN900) cloner to RS232 socket.



TPH cloner should be connected to base unit RS232 socket using original RS232 cable delivered with cloner for connection

with TRS5000 device.


set TPX3/4/CN3 decoder to TPH/CN900 CLONER (Setup).




click Write.

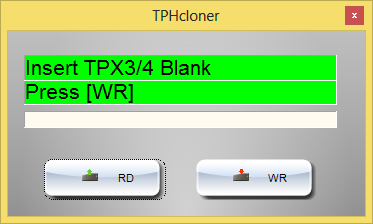

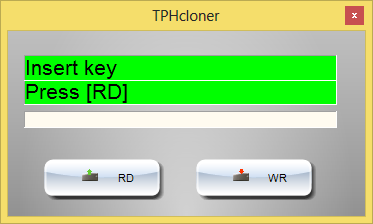

tph_cloner1 tph_cloner2


Start decoding.

Commands will be displayed in the same way like for TRS5000+TPH cloner.

See TPH cloner manual.
