VW, Skoda, Seat IMMO1 immobox Siemens



mod14



TRANSPONDER

PIN



Memory

68HC05B8

Dump file size

256

Original transponder type

33

Transponder to write

T5, PCF7930/31/35



Seat Arosa(-1998)

Seat Alhambra(-1998)

Seat Cordoba(-1998)

Seat Ibiza(-1998)

Seat Inca(-1998)

Seat Toledo

Skoda Felicia

Skoda Pick-up

VW Caddy(-1998)

VW Golf 3

VW Golf Cabrio(-1998)

VW Passat 3

VW Polo 3(-1998)

VW Sharan(-1998)

VW Transporter(-1998)

VW Vento





Transponder is ready to start the vehicle.





Its also possible to read memory from immo with Opel/VW immo1 reader connected to base unit RS232 socket:



•connect Opel/VW immo1 reader to RS232 socket



rs232

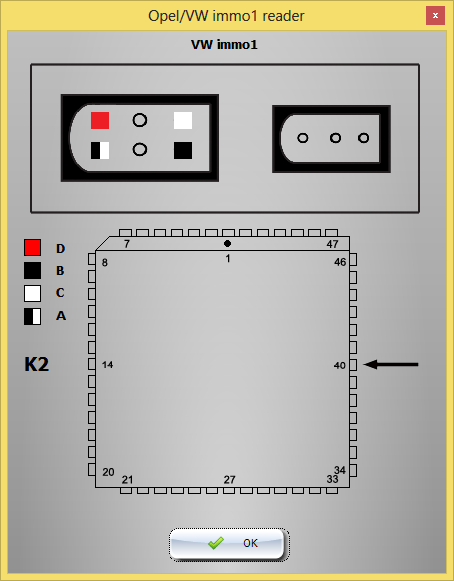

•clik immo1 reader



immo1 reader click



immo1



•check connections between reader and immo and click OK to read
