Renault UCH Sagem type 1



mod67



TRANSPONDER



REMOTE

Memory

93C66

Dump file size

512

Original transponder type

46

Transponder to write

PCF7936/46, 46w2/LKP03/KD46



Renault Clio(2001-2005)

Renault Mascott





type 46



module 46 46w

Transponder is ready to start the vehicle.

Eeprom memory must be updated.



module 46w 46

Transponder is ready to start the vehicle.





Eeprom memoy can be read using AC reader connected to the base unit RS232 socket.



•connect AC reader to RS232 socket and power supply



rs232



•clik AC reader



ac reader



renault uch

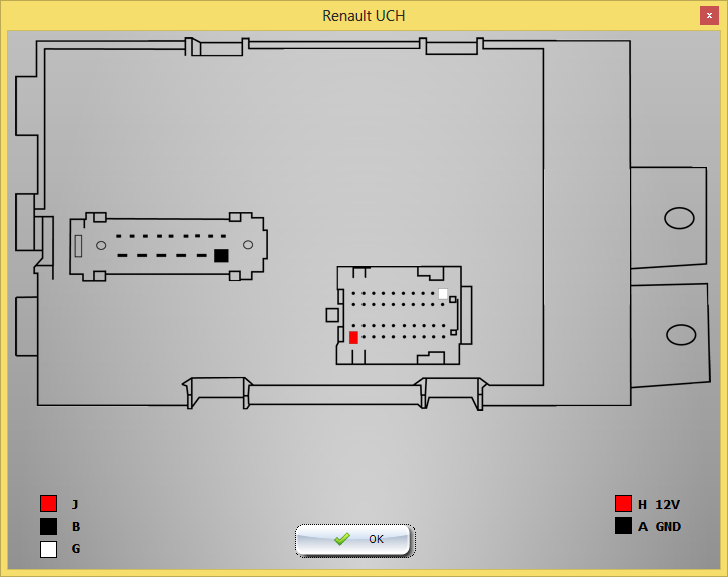

•check connections between reader and immo and click OK to read.
