With this function you can program transponders using SuperVAG device files.


Files NEC VDO, Magneti Marelli, RB8 ID:48 (Megamos crypto)



Seat Alhambra(2010-)

Seat Altea(2010-)

Seat Exeo(2009-)

Seat Ibiza(2009-)

Seat Ibiza (PQ25)

Seat Leon(2009-)

Seat Toledo(2011-)

Skoda Fabia II(2010-)

Skoda Fabia (PQ25)

Skoda Octavia II(2009-)

Skoda Roomster(2010-)

Skoda Roomster (PQ25)

Skoda Superb II(2009-)

Skoda Yeti(2010-)

VW Amarok(2011-)

VW Golf VI(2009-2012)

VW Jetta USA (2010-2012)

VW Polo(2009-)

VW Polo (PQ25)

VW Sharan(2010-)

VW Tiguan(2010-)

VW Touran(2010-)

VW Transporter(2010-)

Magneti Marelli

Seat Mii

Skoda Citigo

VW New Beetle

VW Up!


Audi A4 (2005-2008)

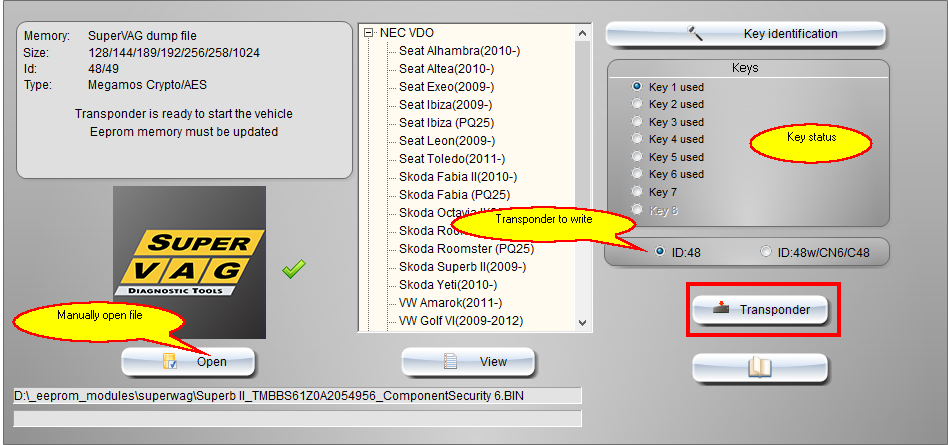

Drag and drop the SuperVAG binary file to the AdvCodeEvo window or load file manually - Open.

In key status window you show which keys are used.


Choose transponder to write:

ID:48 - original Megamos crypto - saved new eeprom file must be written to the car using SuperVAG.

ID:48w/CN6/C48 - writeable  transponder - transponder is ready to start the car without memory update.


Put blank transponder into base unit and click Transponder.


Files MQB VDO, Johnson Controls ID:49 (Megamos AES) Working key required !!


Audi A3 (8V) 2012 - 2017

Audi S3 (8V) 2012 - 2017

Audi Q2 (GA) 2017 - 2019

Skoda Octavia III 2015-

Skoda Karoq 2017-

Skoda Kodiaq 2017-

Skoda Fabia III 2015-

Skoda Octavia III facelift 2016-

Skoda Rapid 2012-

Skoda Superb III 2015-

Golf  2012 - 2019

Passat (USA) 2011 - 2019

Polo (V) 2014 - 2019

Tiguan 2016 - 2019

Touran (5T) 2016 - 2019

Seat Ibiza 2015-

Seat Leon 2013-

Seat Ateca 2016-

Seat Toledo 2013-

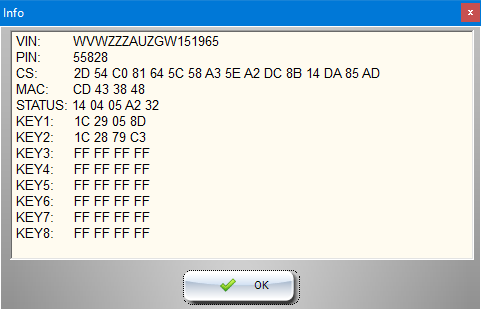

mqb infoAdditional info

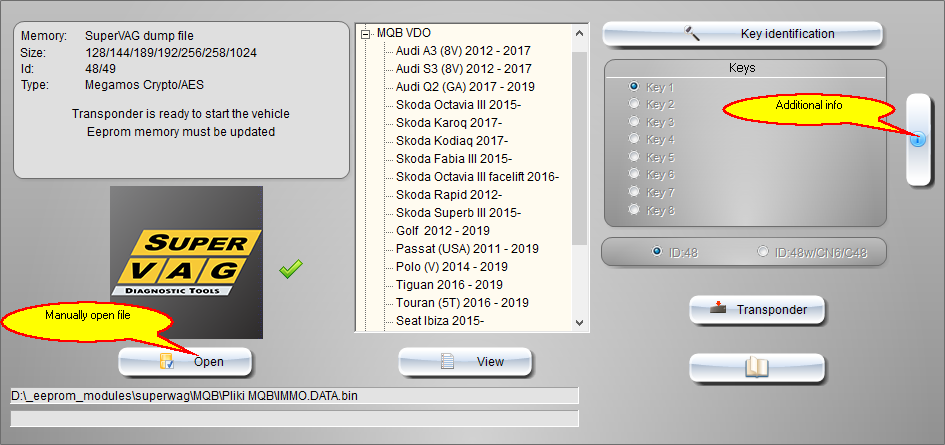

Drag and drop the SuperVAG binary file to the AdvCodeEvo window or load file manually - Open.


Click Transponder.


supervag49 1

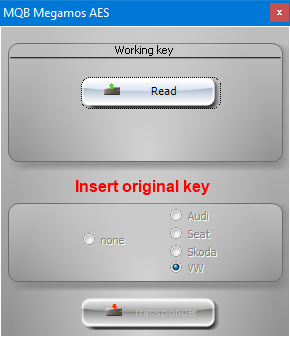

Insert the working key and press Read.


supervag49 2

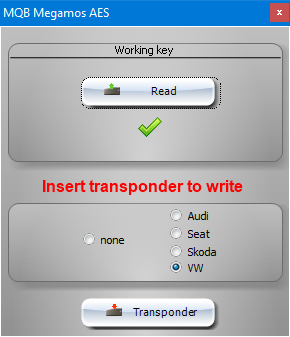

Insert transponder to write and press Transponder.


Transponder has to be matched with car using SuperVAG.



Key identification - identify if transponder (key) corresponds to any key stored in the dump file. Put key to check into base unit and click button.
