Can be cloned:



ID:67, 68, 69, some 6A, 70Europe, 71, 72 - standalone

Others using PC software or with connected JMA TPX cloner.



Warning! Software package P1 required for cloning on TPX2.







Additional info - :









CN5 - CN5 transponder

LKP02 - LKP02 transponder

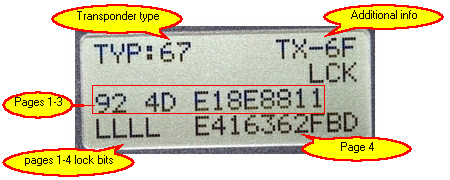

When Page4 is visible transponder can be cloned directly.



Press .

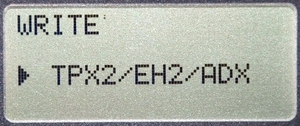

Choose transponder to write using up/down keys:

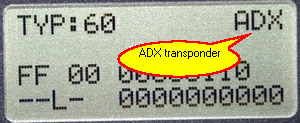

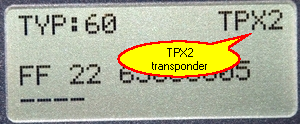

EH2,TPX2,ADX,CN2,CN5,LKP02 (for ID:64 EH2,TPX2,CN5,LKP02)



Put transponder to write to the antenna.



Press to write or to return.



Wait for the end of procedure:





or





Press to return.

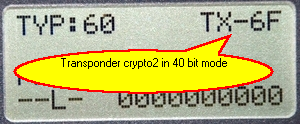

When Page4 is not visible you can use PC program to clone transponder or decode crypto code

using JMA TPX cloner connected to base unit.



TPX cloner should be connected to base unit RS232 socket using original RS232 cable delivered with cloner for connection

with TRS5000 device.





Press .

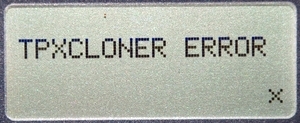

If cloner is not connected



press to return,



otherwise wait for the end of decoding.



When Page4 will be visible copy transponder as described above.
