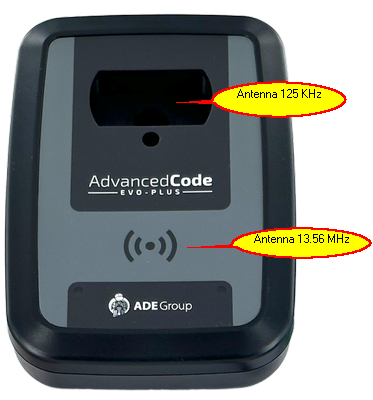

Front panel

device front

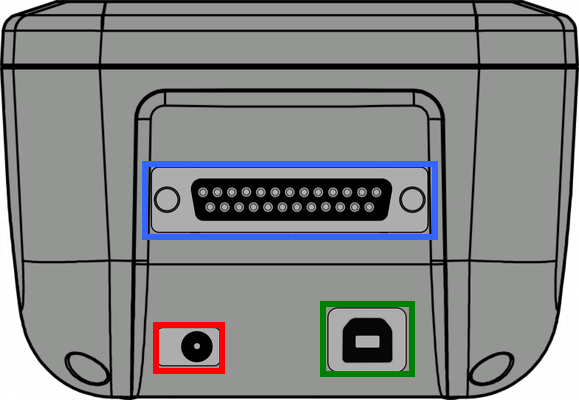

Back panel



tyl 400 db25 power usb







DB25 socket for additional cables / programmers



USB port - power supply, connection with PC



Additional power supply socket - 12V / 1A  (5.5 / 2.5 ) used with D1,ED2,D3,D4,ED7

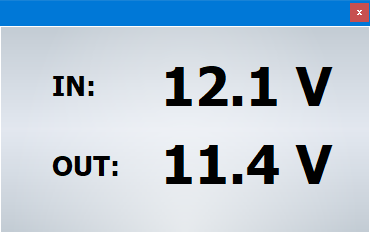

Current voltage can be measured using Voltage meter function.



volt1





volt



IN:        Input voltage - 5.5 / 2.5 socket

OUT:        Output voltage - DB25 socket
