Cloning on TK60,46w2,LKP03,KD46,CN3,XT27 - online



NOTE:

PC should have access to internet.



tk60 2

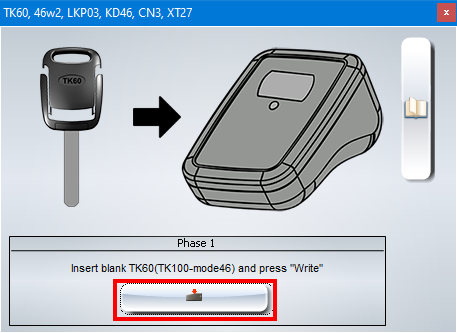

•Put blank TK60 (TK100 in 46 mode) transponder into base unit and click Write



tk60 3



•Perform operations in the car - turn ingition on and off 3-5 times (wait for 2 seconds in each cycle) .
•Click OK.



tk60 4



•Put the same TK60 (TK100) transponder into base unit and click Read



tk60 5

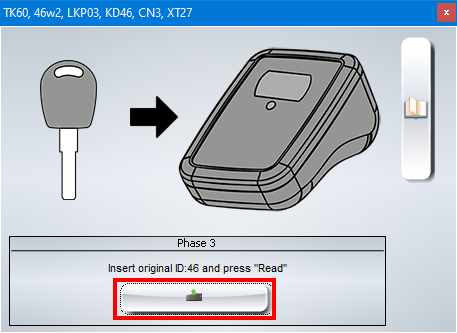

•Put original transponder into base unit and click Read



tk60 6

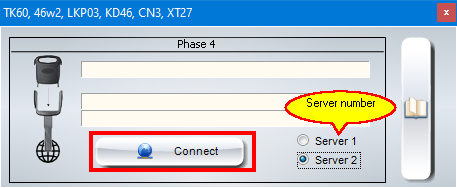

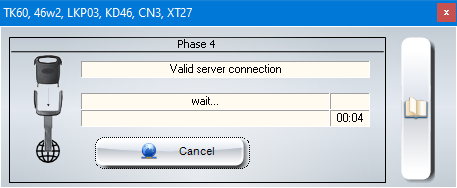

•Click Connect to connect to internet server and start decoding.



tk60 7



tk60 8



•Put original transponder into base unit and click Read



tk60 cr



Additional decoded crypto code is displayed.



tk60 cr2

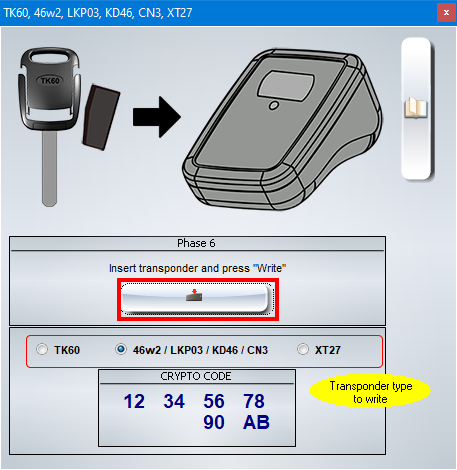

•Choose transponder type to write and click Write



For carbon 46w2/LKP03/KD46 there is possibility to perform write test to check transponder validation.



tk60 10



tk60 ready
