Generate transponders, calculate PIN with use of immo dump.



We would also suggest that you use a quality eeprom and micro-processor reader and programmer.

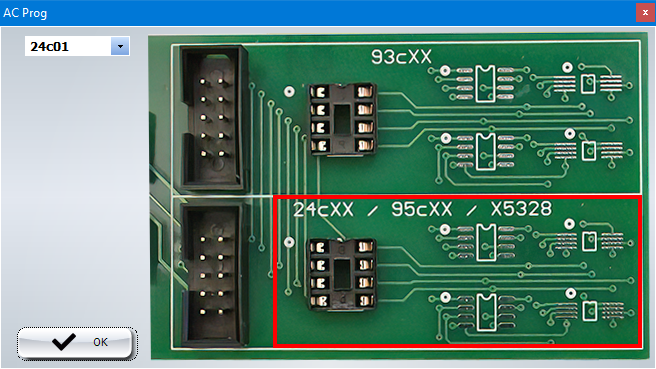

For 93cXX, 95cXX,24cXX maybe used internal programmer AC Prog.



eeprom1

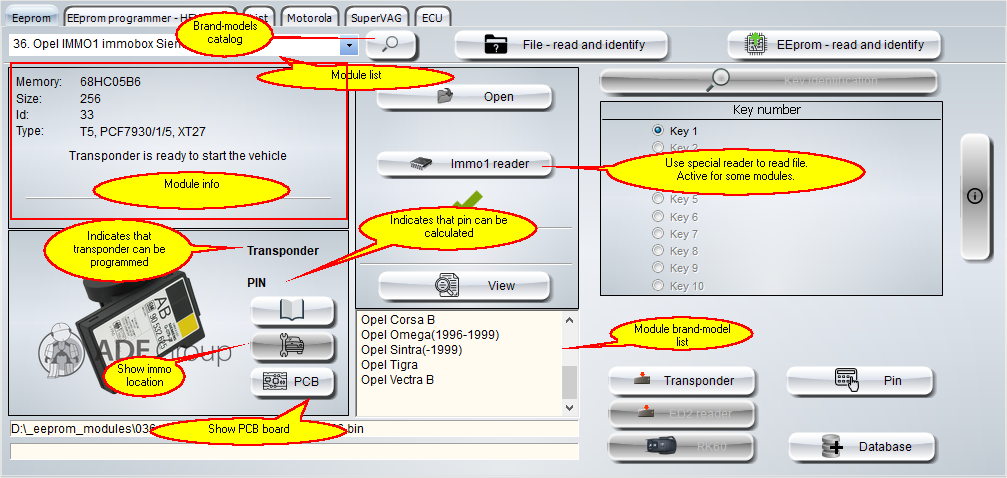

Module info windows contains basic information about chosen module: memory type, memory size, original transponder type, transponder type to write.

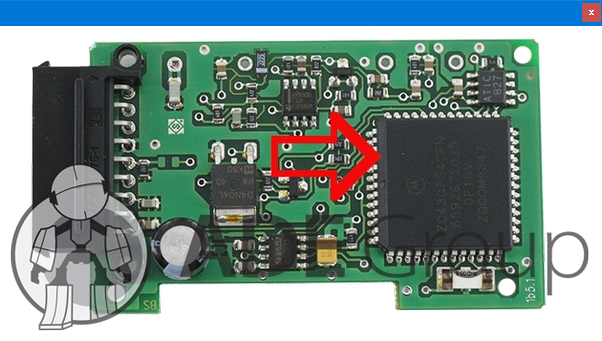

For majority modules program contains PCB board pictures.

eeprom board

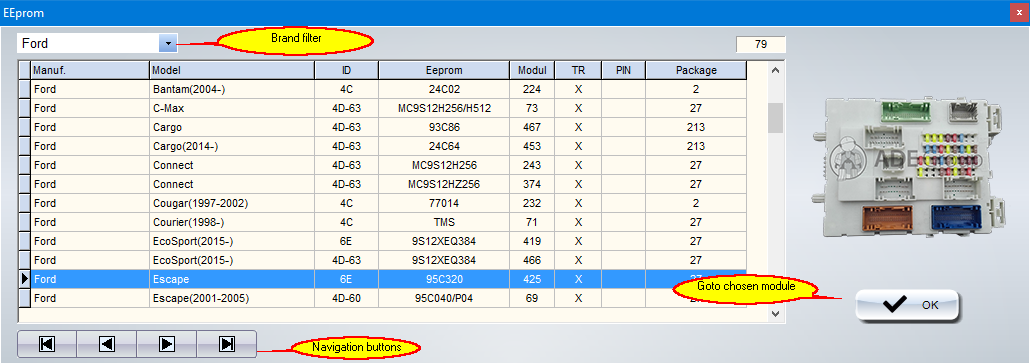

Brand-model catalogue allows you to find right module.

eeprom2



•Drag and drop the dump binary file to the AdvEvoPlus window or load file manually :

File - read and identify - program automatically checks the file and choose the corresponding module.

EEprom - read and identify - read eeprom using AC Prog and choose the corresponding module.



eep reader\

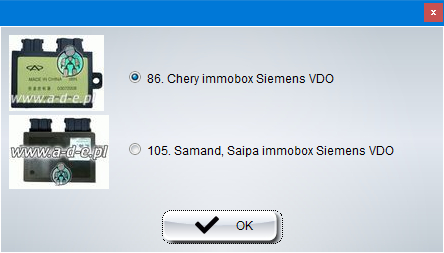

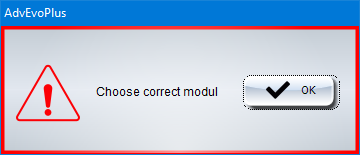

For some modules you will be asked to choose correct module.



wybor modul 1



wybor modul 2



Open - Load file to selected module.

For some modules additional button may be visible eg. Immo1 reader - use special reader to read immo directly.

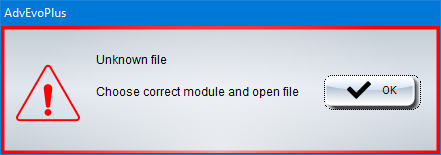

If program can't identify file, try load file manually to correct module.



unknown file



If manually loaded file is correct you will see



module ok



or



module notok



if program can't recognize the file.





•File loaded



module opis 1



▪Key identification - by putting the customers original key to the base station it will tell you which key he has.



module ident key 1 module ident key 2

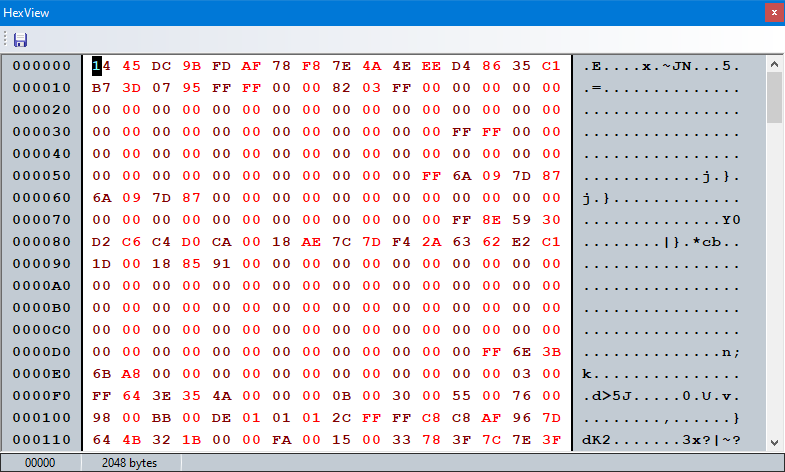

▪View - view file.



module hexview

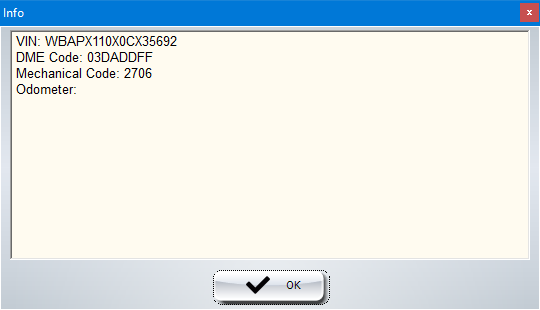

▪Additional info - some more info about the car: VIN, millage etc (depending on module).



module info



▪Pin - click to calculate PIN



module pin

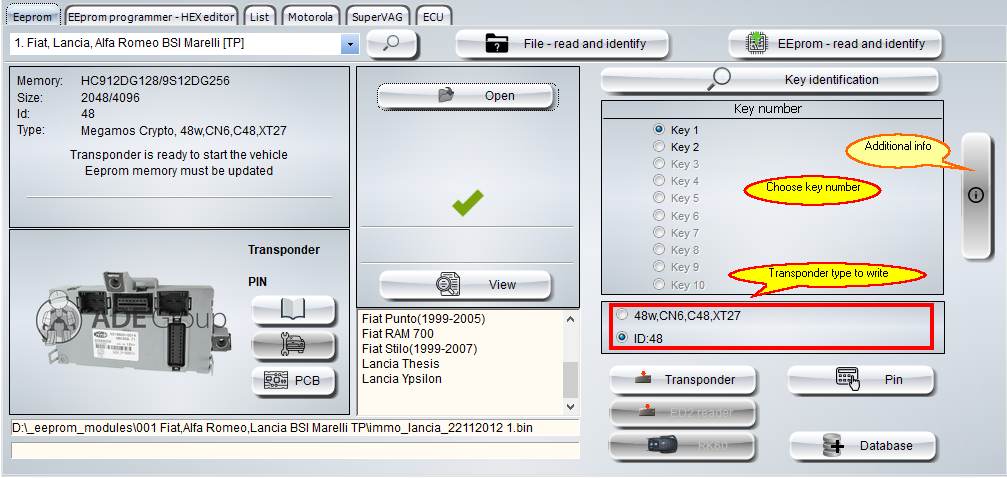

▪Transponder - program transponder from the dump.

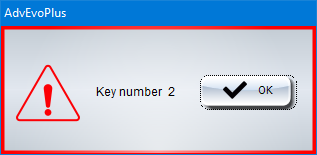

Choose key number.

For some modules choose transponder type to write - see modules descriptions.



module tr 1

module tr 11

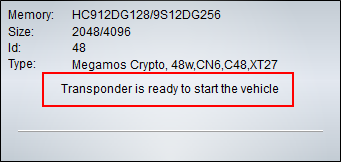

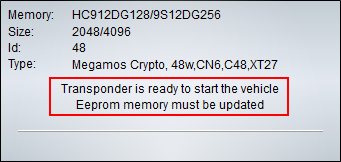

Transponder is ready to start the vehicle but eeprom memory must be updated (write back the new file to the immo memory).

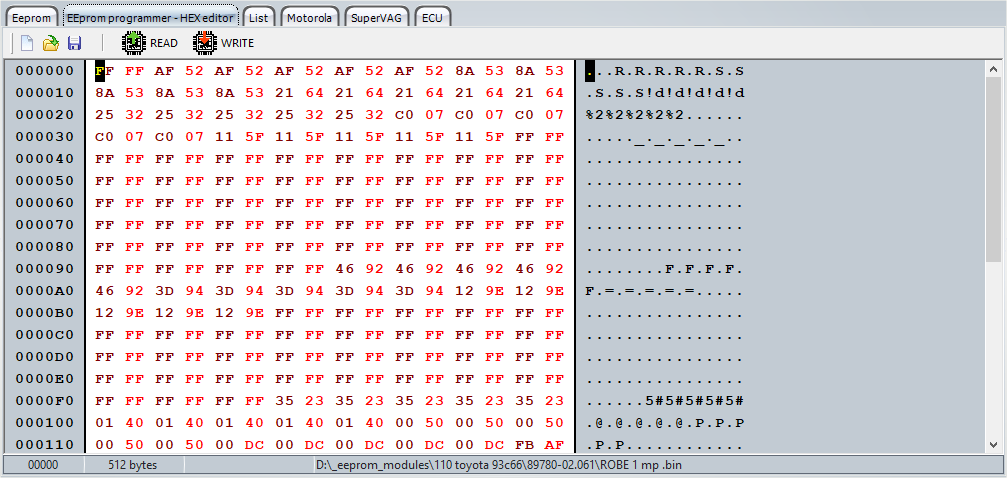

The new file is also automatically stored in the EEprom programmer - HEX editor.

The file can be written back using AC Prog.



eepwr file



module tr 2

module tr 21



Transponder is ready to start the vehicle.



Click Transponder to make the key.
