Seat, Peugeot, Piaggio bikes immobox Marelli



mod119

TRANSPONDER





Memory

68HC05E6

Dump file size

160

Original transponder type

11

Transponder to write

T5, TK5551, XT27



Ducati Moster 400

Ducati ST4S

Fiat Fiorino

Gilera GP800

Gilera Nexus 350

Gilera Nexus 500

Peugeot Alise

Peugeot Eliseo

Peugeot Elystar

Peugeot Jet Force

Peugeot Speedfight

Peugeot Squab

Peugeot 103

Piaggio Beverly

Piaggio Liberty

Piaggio Vespa

Piaggio X8

Piaggio X9

Seat Marbella

Seat Panda





Transponder is ready to start the vehicle.





Keys data can be read using ED2 reader connected to the base unit  socket.



•connect ED2 reader to DB25 socket and  and connect the power supply.



tyl 400 db25 power



•clik ED2 reader



ac reader2



•put transponder to the antenna



insert tr

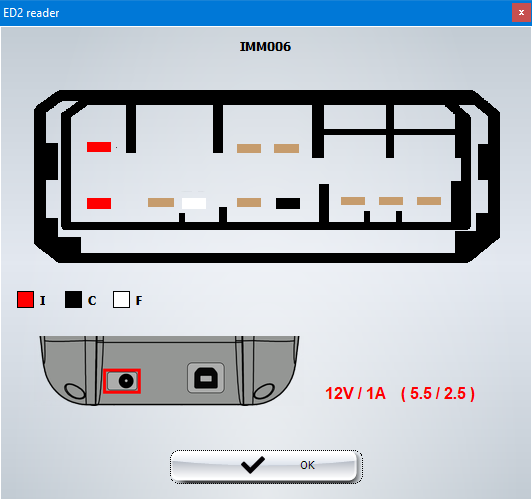

•click OK



modul119 ac reader



•check connections between reader and immo and click OK to program the key.
