VW, Skoda, Seat IMMO1 immobox Siemens



mod14



TRANSPONDER

PIN



Memory

68HC05B8

Dump file size

256

Original transponder type

33

Transponder to write

T5, PCF7930/31/35, XT27



Seat Arosa(-1998)

Seat Alhambra(-1998)

Seat Cordoba(-1998)

Seat Ibiza(-1998)

Seat Inca(-1998)

Seat Toledo

Skoda Felicia

Skoda Pick-up

VW Caddy(-1998)

VW Golf 3

VW Golf Cabrio(-1998)

VW Passat 3

VW Polo 3(-1998)

VW Sharan(-1998)

VW Transporter(-1998)

VW Vento





Transponder is ready to start the vehicle.





Its also possible to read memory from immo with Opel/VW immo1 reader connected to base unit socket:



•connect Opel/VW immo1 reader to the socket and  connect the power supply.



tyl 400 db25 power



•clik immo1 reader

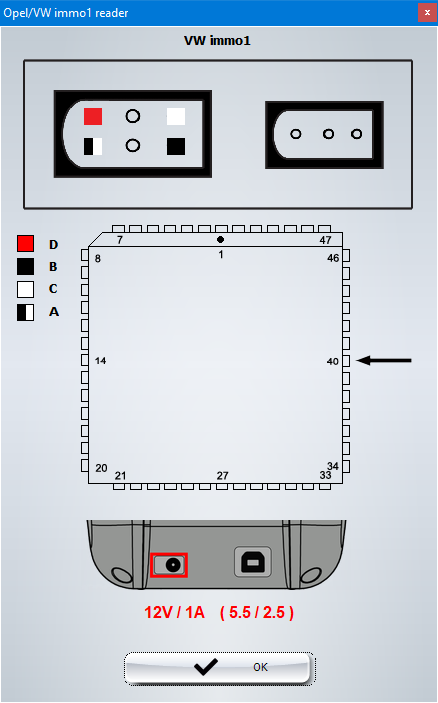

immo1 reader click



vw immo1



•check connections between reader and immo and click OK to read
