Piaggio bikes ECU EFI



mod192



TRANSPONDER





Memory

ST72334/25040/080

Dump file size

256/512/1024

Original transponder type

11

Transponder to write

T5, TK5551, XT27



Piaggio MP3

Piaggio Vespa

Piaggio ACII ECU

Piaggio AC2I ECU

Piaggio AC5I ECU

Piaggio AC8I ECU

Piaggio AC13I ECU

Piaggio AC19I ECU

Piaggio AC20I ECU

Piaggio AC21I ECU

Piaggio AC23I ECU

Piaggio AC25I ECU

Piaggio AC25I ECU

Piaggio AC27I ECU

Piaggio AC32I ECU





Transponder is ready to start the vehicle.





Keys data can be read using ED2 reader connected to the base unit socket.



•connect ED2 reader to the base unit socket and and connect the power supply.



tyl 400 db25 power



•click ED2 reader



ac reader2



•put transponder to the antenna



insert tr



•click OK



acreader 192

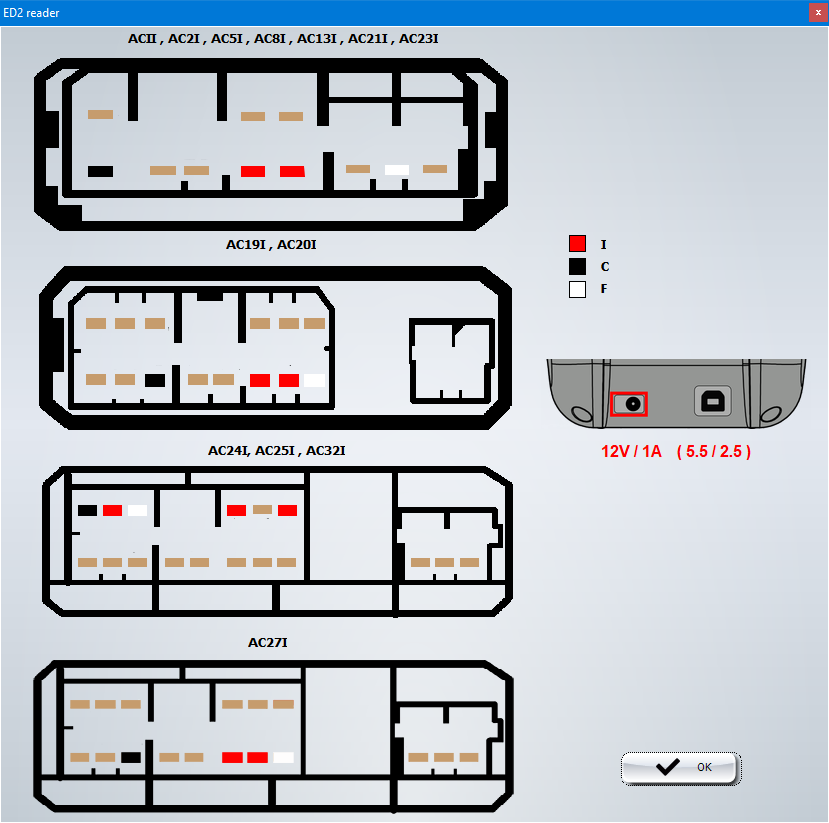

•check connections between reader and immo and click OK to program the key.
