Fiat BSI Marelli type 4



mod310



TRANSPONDER

PIN

REMOTE

Memory

95C160/640

Dump file size

2048/8092

Original transponder type

46

Transponder to write

PCF7936/46, 46w2, LKP03, KD46, CN3, XT27



Alfa Romeo Giulietta

Fiat Ducato(2011-)

Fiat Grand Siena(2011-)

Fiat Palio(2011-)

Fiat Siena

Fiat 500L(2011-)

Iveco Daily(2011-)

Peugeot Boxer(2012-)





type 46



module 46 46w

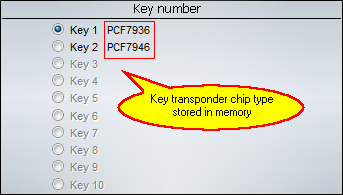

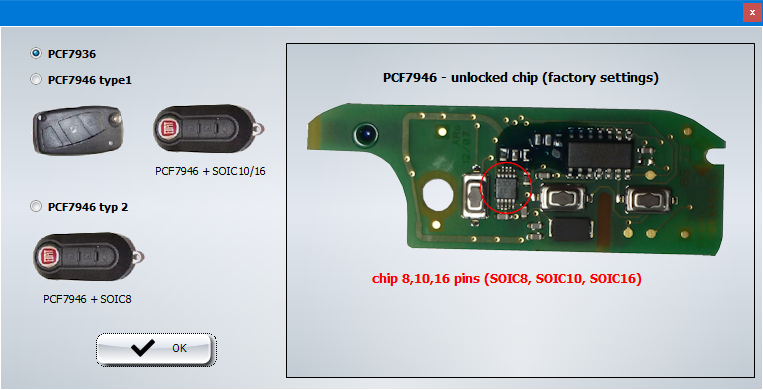

Choose transponder type:

remote fiat

Transponder is ready to start the vehicle.

Eeprom memory must be updated.



module 46w 46

Transponder is ready to start the vehicle - remote part will not be active.



Its also possible to program remote key using RK60 head - transponder is ready to start the vehicle.



rk60



Click RK60 to program the key (internet connection required).
