Opel IMMO1 immobox Siemens



mod36



TRANSPONDER

PIN



Memory

68HC05B6

Dump file size

256

Original transponder type

33

Transponder to write

T5, PCF7930/31/35, XT27



Cadillac Catera

Holden Barina(1995-2000)

Holden VC Combo(1997-)

Holden Vectra(1998-2002)

Opel Astra F

Opel Calibra

Opel Combo B

Opel Corsa B

Opel Omega(1996-1999)

Opel Sintra(-1999)

Opel Tigra

Opel Vectra B





Transponder is ready to start the vehicle.

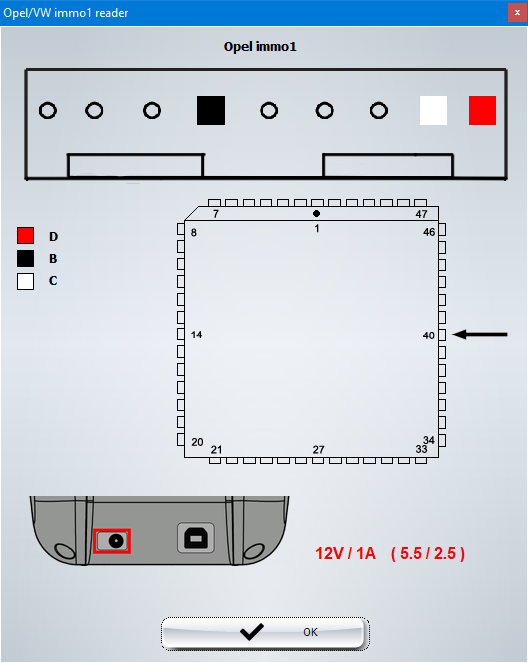

Its also possible to read memory from immo with Opel/VW immo1 reader connected to the base unit socket:



•connect Opel/VW immo1 reader to the socket and connect the power supply.



tyl 400 db25 power



•clik Immo1 reader



immo1 reader click



immo1



•check connections between reader and immo and click OK to read
