Renault UCH Sagem type 1



mod67



TRANSPONDER



REMOTE

Memory

93C66

Dump file size

512

Original transponder type

46

Transponder to write

PCF7936/46, 46w2, LKP03, KD46, CN3, XT27



Renault Clio(2001-2005)

Renault Mascott





type 46



module 46 46w

Transponder is ready to start the vehicle.

Eeprom memory must be updated.



module 46w 46

Transponder is ready to start the vehicle.

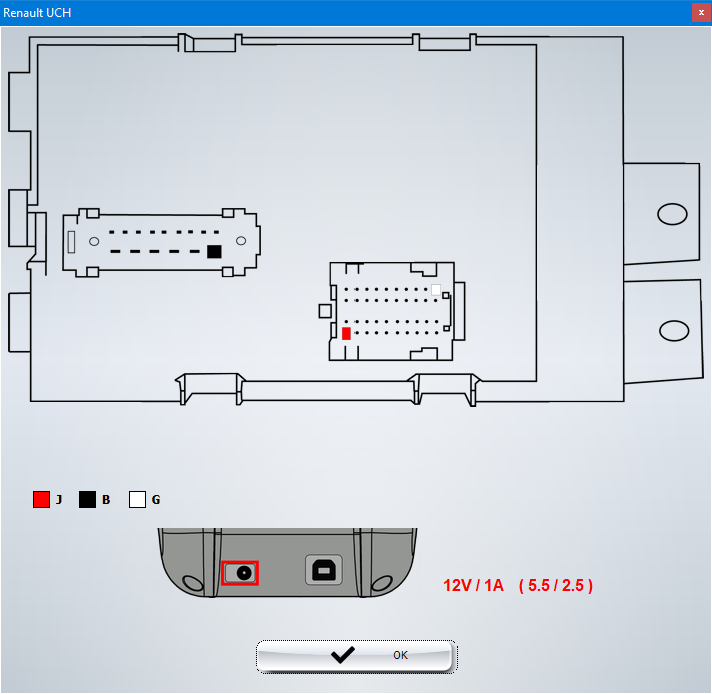

Eeprom memoy can be read using ED2 reader connected to the base unit socket.



•connect ED2 reader to socket and and connect the power supply.



tyl 400 db25 power



•clik ED2 reader



ac reader



renault uch



•check connections between reader and immo and click OK to read.
