1.Toyota H



The system allows to solve all key lost situation by creating a master key from the immobilizer.

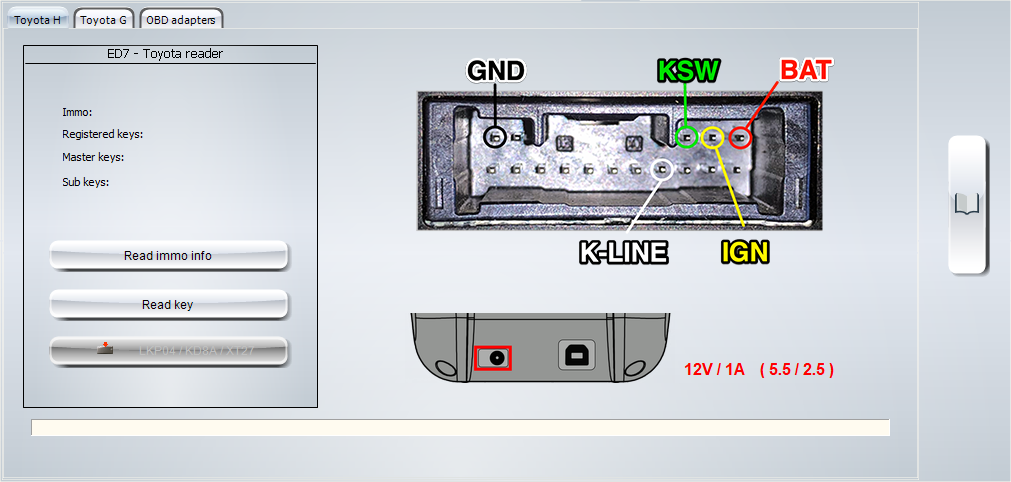

ToyotaH





•Take off the vehicle immobolizer off and connect to ED7 cable.
•Connect power supply to the base unit (12V/1A DC)



d7 1 445



•Press Read immo info to check connection.
•Press Read key. Car data is not altered.
•Wait for the end of the procedure.
•Insert LKP04/KD8A/XT27/KD26/LKP06 transponder and press Transponder LKP04/KD8A/XT27/KD26/LKP06 to make master key.



2.Toyota G



The system allows to solve all key lost situation by reseting the immobilizer using OBD K-Line interface.

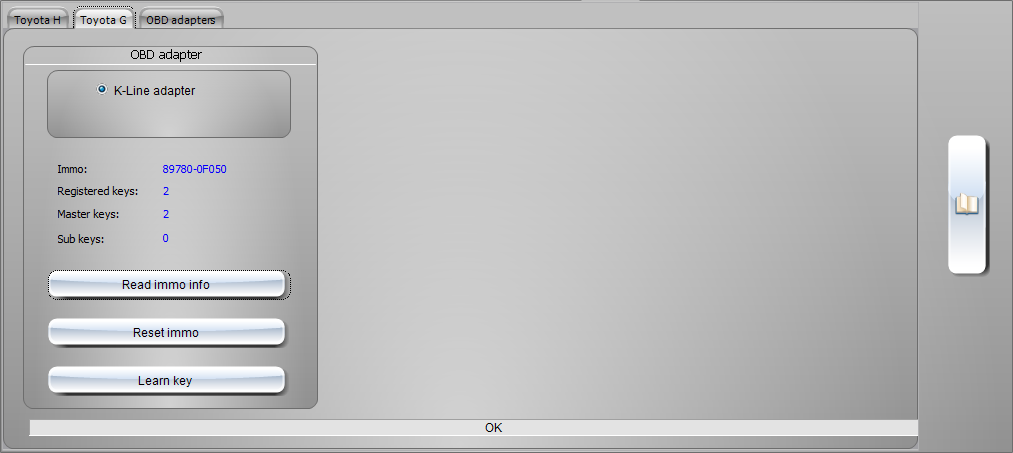

Toyota G



•Connect the K-Line adapter to PC and set the COM port (OBD -> OBD adapters).

k-line 260

•Press Read immo info to check connection.
•Press Reset immo.
•Press Learn key to start key learning procedure.



3.OBD Adapters

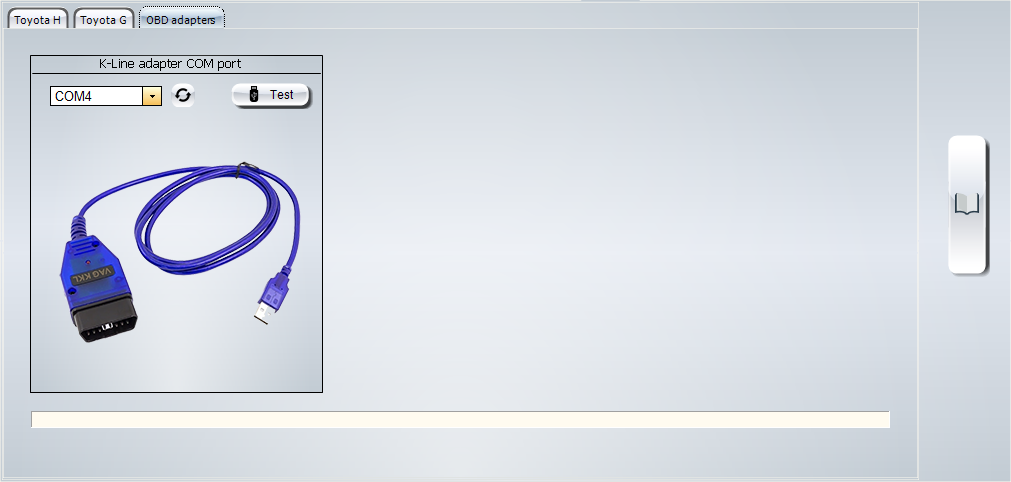

OBD adapters

Select COM Port for K-Line adapter.
