setup11

Current program version.

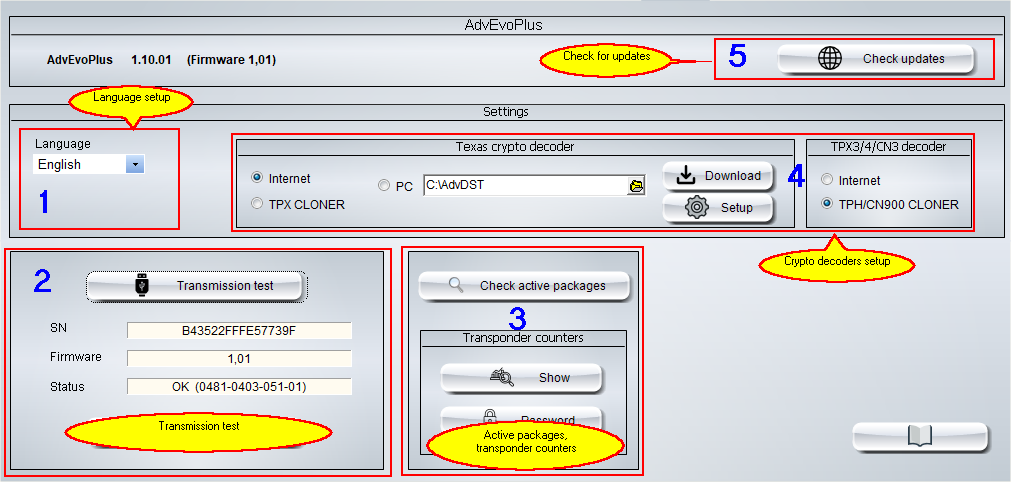

setup 1



1.Language setup.



Language version: Polish, English, Czech, Russian, Spanish, Slovak, Portugal, French, Italian.



2.Transmission test.

The hardware (base unit) version and serial number will come up.



3.Active packages.
•Click Check active packages to see your active functions.

setup 2

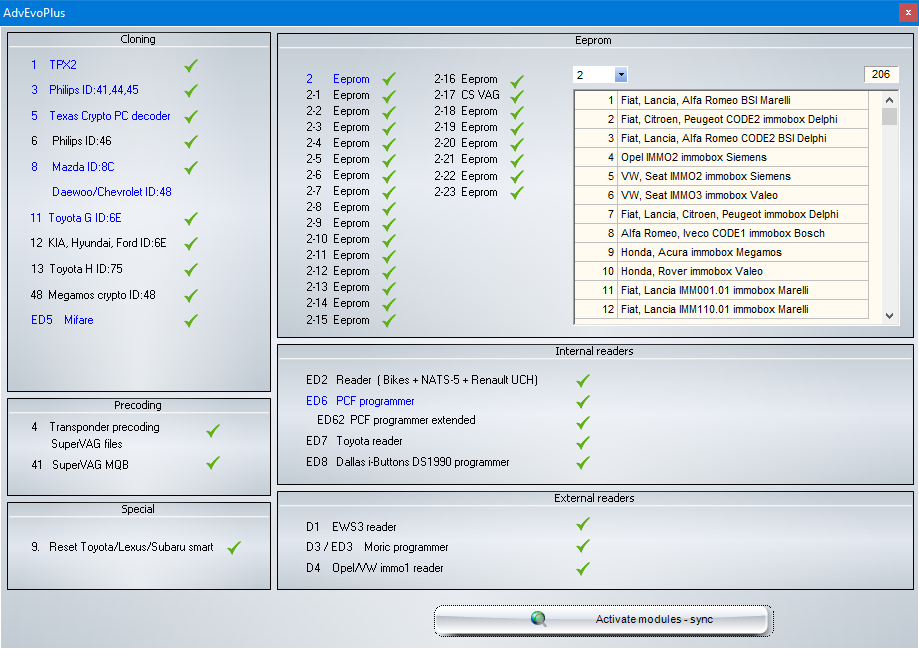

This is an activated full AdvEvoPlus.

You can manually activate modules and load tokens (you should have access to internet).

Usually modules are automatically activated while program start.

•Transponder counters.

Special function to check how many transponders (keys) were cloned. Counters may be  protected by password.

To change password click Password.

setup psw1 setup psw2

Type "000000" to make password not active.

Click Show to view counters.

setup psw3

setup 6

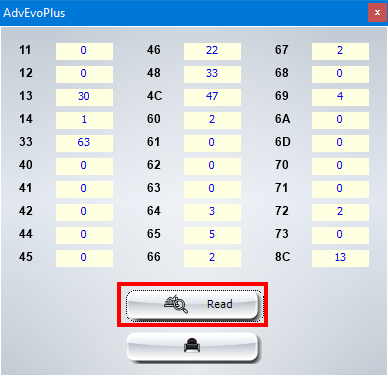

Click Read to read counters values from the base unit.



4.Crypto transponders decoders setup.
•Texas crypto decoder.

Select one of the 3 ways here.

This allows either internet based, TPX cloner connected to the base unit or via the encryption on your pc.

If you want use encryption on PC, encryption tables must be downloaded.

Click Download.



setup 3



Click Download. Tables must not be downloaded in one session.

Next you can decompress downloaded tables.

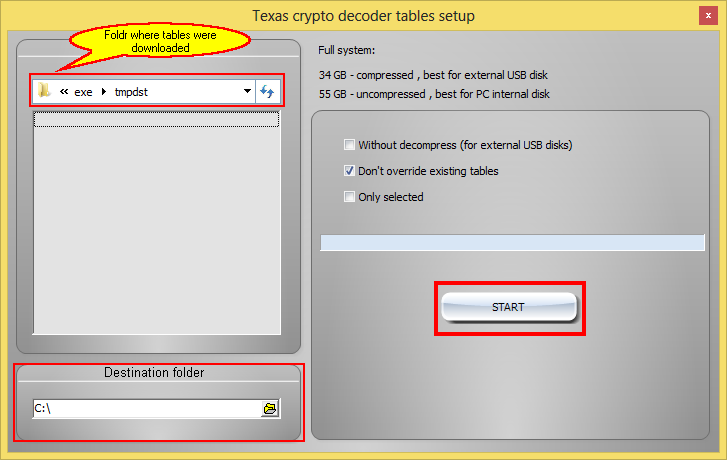

Click Setup.



setup 4



Its recommended to decompress crypto decoder tables - decoding will be faster. But its possible to skip decompress

process.

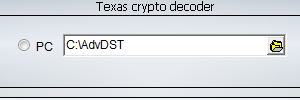

At the end set valid folder with tables (if uncompressed it may be downloading folder).



setup dst folder



•TPX3/4 decoder.

Select one of the 2 ways here.

This allows either internet based, TPH cloner connected to the base unit.



5.Check for updates.



Go here to check for the latest update. If you do not have the latest version then it will download the latest update *.msi file.

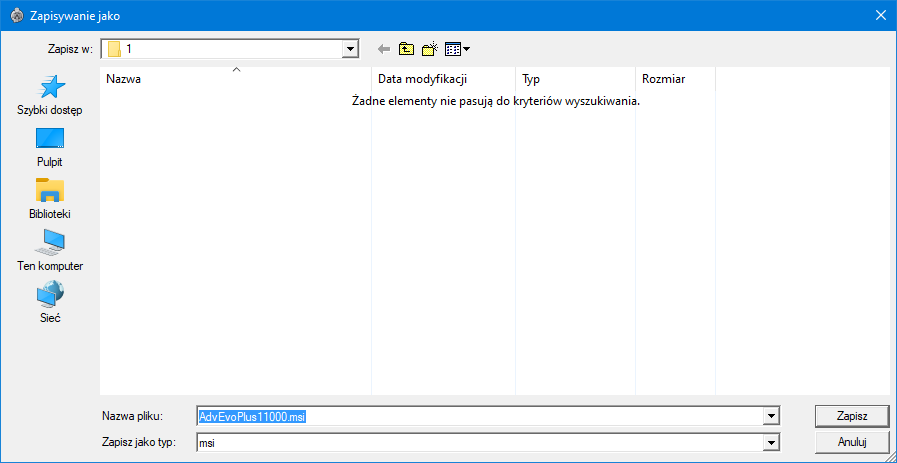

update save as

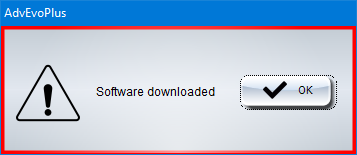

update download ok



Next close the program and run installation file - AdvEvoPlus PC software installation.
