SuperVAG
Contents
With this function you can program transponders using SuperVAG device files.
| • | Files NEC VDO, Magneti Marelli, RB8 ID:48 (Megamos crypto) |
NEC VDO
Seat Alhambra(2010-)
Seat Altea(2010-)
Seat Exeo(2009-)
Seat Ibiza(2009-)
Seat Ibiza (PQ25)
Seat Leon(2009-)
Seat Toledo(2011-)
Skoda Fabia II(2010-)
Skoda Fabia (PQ25)
Skoda Octavia II(2009-)
Skoda Roomster(2010-)
Skoda Roomster (PQ25)
Skoda Superb II(2009-)
Skoda Yeti(2010-)
VW Amarok(2011-)
VW Golf VI(2009-2012)
VW Jetta USA (2010-2012)
VW Polo(2009-)
VW Polo (PQ25)
VW Sharan(2010-)
VW Tiguan(2010-)
VW Touran(2010-)
VW Transporter(2010-)
Magneti Marelli
Seat Mii
Skoda Citigo
VW New Beetle
VW Up!
RB8
Audi A4 (2005-2008)

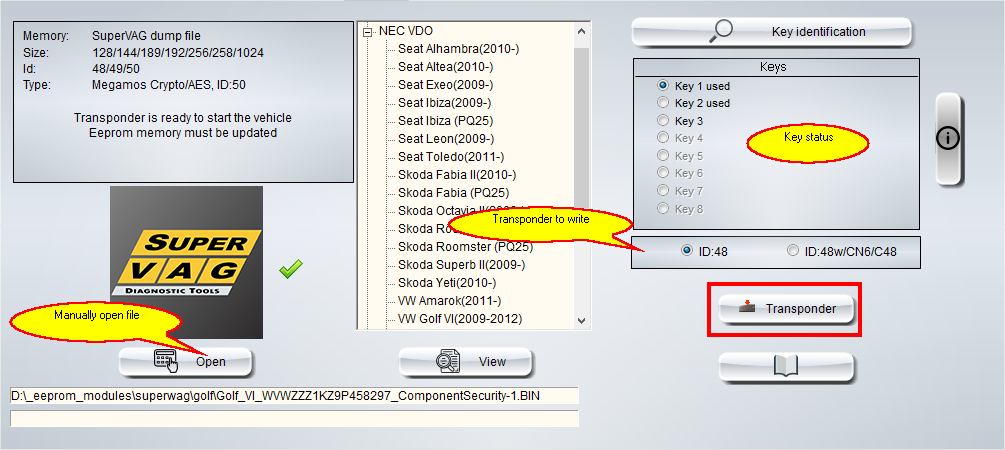

| • | Drag and drop the SuperVAG binary file to the AdvEvoPlus window or load file manually - Open. |
In key status window you show which keys are used.
| • | Choose transponder to write: |
ID:48 - original Megamos crypto - saved new eeprom file must be written to the car using SuperVAG.
ID:48w/CN6/C48 - writeable transponder - transponder is ready to start the car without memory update.
| • | Put blank transponder into base unit and click Transponder. |

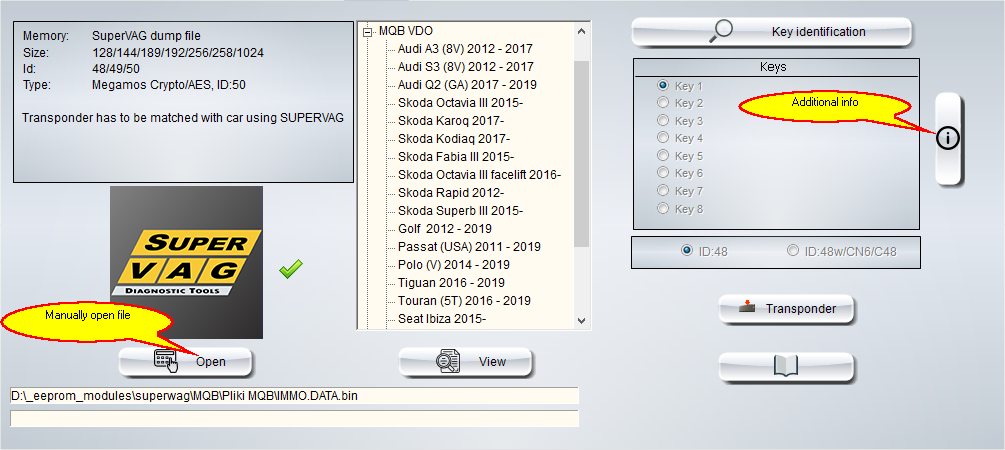

| • | Files MQB VDO, Johnson Controls ID:49 (Megamos AES) Working key required !! |
Audi A3 (8V) 2012 - 2017
Audi S3 (8V) 2012 - 2017
Audi Q2 (GA) 2017 - 2019
Skoda Octavia III 2015-
Skoda Karoq 2017-
Skoda Kodiaq 2017-
Skoda Fabia III 2015-
Skoda Octavia III facelift 2016-
Skoda Rapid 2012-
Skoda Superb III 2015-
Golf 2012 - 2019
Passat (USA) 2011 - 2019
Polo (V) 2014 - 2019
Tiguan 2016 - 2019
Touran (5T) 2016 - 2019
Seat Ibiza 2015-
Seat Leon 2013-
Seat Ateca 2016-
Seat Toledo 2013-

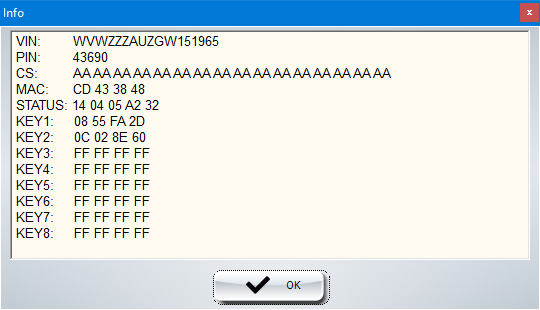

Additional info
| • | Drag and drop the SuperVAG binary file to the AdvEvoPlus window or load file manually - Open. |
| • | Click Transponder. |

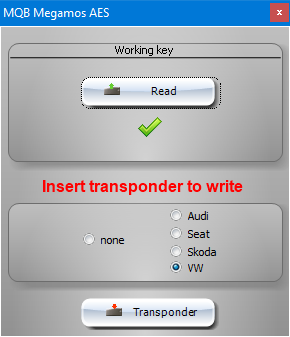

| • | Insert the working key and press Read. |
| • | Insert transponder to write and press Transponder. |
Transponder has to be matched with car using SuperVAG.
Key identification - identify if transponder (key) corresponds to any key stored in the dump file. Put key to check into base unit and click button.
| • | Files Audi BCM2 ID:50 (PCF7945AC) |
Audi A4
Audi A5
Audi Q5
Preparing dealer key.
Transponder has to be matched with car using SUPERVAG or other tool.
