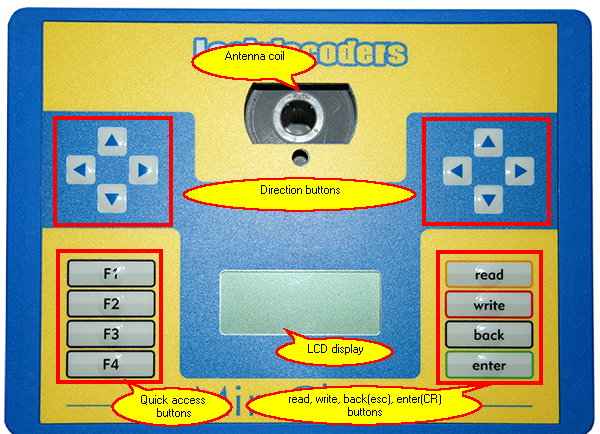

Front panel

device front

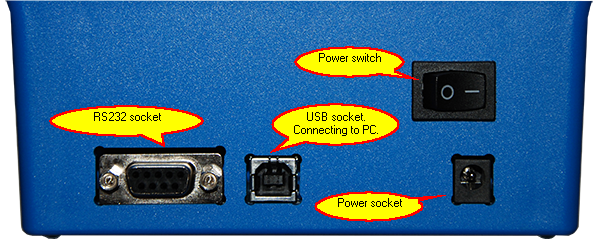

Back panel

device back



Getting started:



Connect power supply to the power socket.
Connect device to PC using USB A-B cable connected to USB socket (not necessary fro stand-alone use).
Switch power on.





Important! For all operations with transponder.



Transponder should be placed to the base unit antenna coil as below.

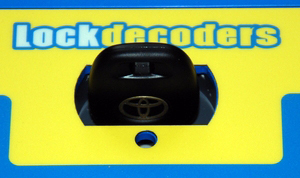

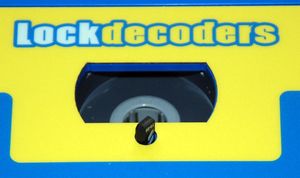

tr_read1s tr_read2s



Some smart keys (eg. Toyota smart) should be placed in different position.

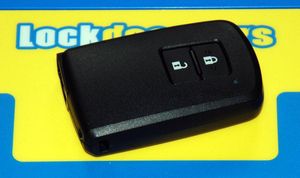

tr_read3s
