Using this function you can type the data manually to the transponder.



•Temic ID:11
•Temic ID:12
•Megamos ID:13
•Megamos ID:14
•Philips ID:33
•Texas ID:4C
•VAG CS A1 VW - write component security to VAG can ID:48 VW
•VAG CS A2 Audi - write component security to VAG can ID:48 Audi
•VAG CS A3 Seat - write component security to VAG can ID:48 Seat
•VAG CS A4 Skoda - write component security to VAG can ID:48 Skoda
•Lock ID:48



Use up/down keys to select item.

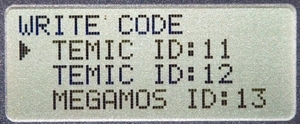

DSC_0120 write code



Press key enter to accept or key back to return.



For Lock ID:48 put transponder to the antenna.





Write ID:11, ID:12, ID:13, ID:14, ID:33, ID:4C code

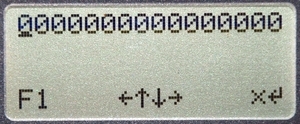

DSC_0121 write code input



Use left/right keys to change cursor position.

Use up/down keys to change digit (0-F) on cursor position.



You can press key f1 to change input system.

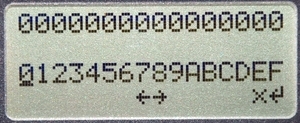

DSC_0122 write code F1



Use left/right keys to select digit to store on the cursor position and press key enter to accept or key back to return.



At the end press key enter to accept or key back to return.



DSC_0130 13



Transponder data are ready to write. See transponder cloning.





Write VAG component security

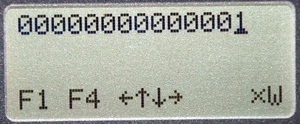

DSC_0127 write code vag



Type code as described above.



Additional function key f4 increase last byte value (last two digits).



Put VAG CAN transponder to the antenna.



Press key write to write or key back to return.





Lock ID:48

Choose Lock ID:48 in the write code menu and press key enter.

Wait for "success" or "write error".
