Cloning on TPX3/4, CN3 - online



On the market there are few different chinese transponders named "CN3".



▪Type 1 - "Full" CN3



Can be used  in all cloning steps 1-3: for sniff and to write.



▪Type 2 - sniff mode doesn't work



Can't be used  as sniff (steps 1-2).



There is no possibility to delete not blank CN3 for sniff:

clone46_error1



or CN3 transponder can't collect sniff data:

clone46_error2

clone46_error3



Collect sniff data using TPX4 transponder and use CN3 in step 3.



▪Type 3



Transponders are identified as "TPX/CN3" but gives write errors even in step 3.

Can't be used cause of unknown  type or poor quality.





NOTE:

PC should have access to internet.





•set TPX3/4/CN3 decoder to Internet (Setup).



tph_cloner3



•click Write.



cn3 2

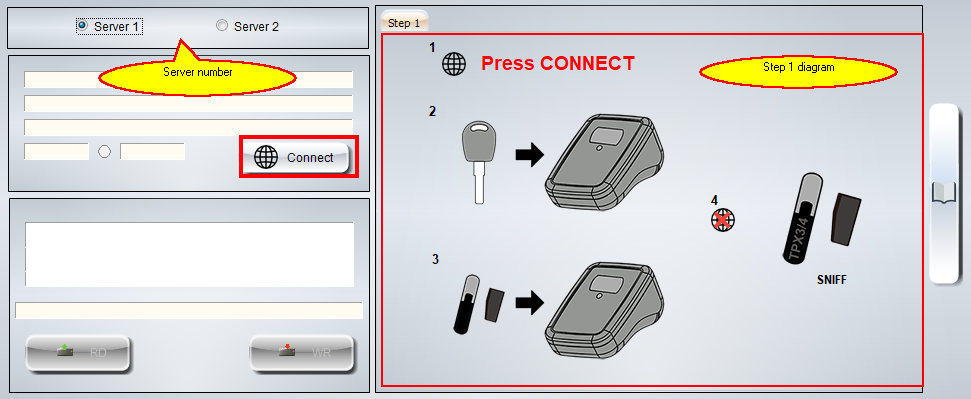

•Click Connect to connect to internet server and start procedure.



cn3 21

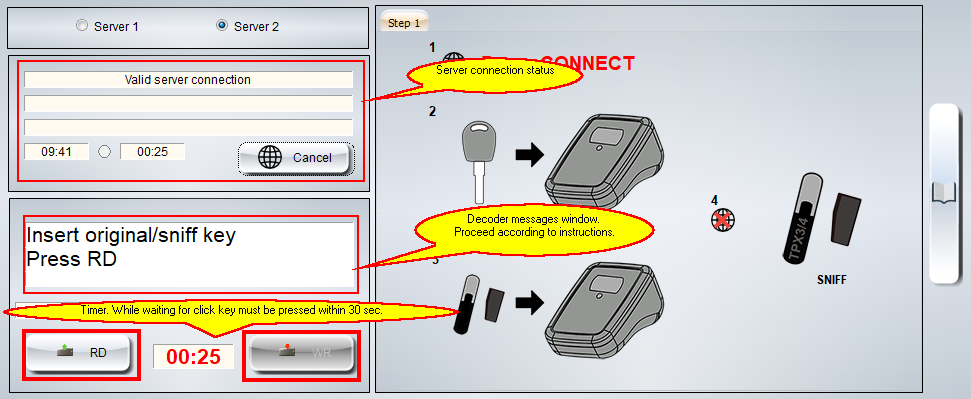

Proceed according to instructions from decoder messages window.



▪Read original key.

clone46_0        RD

clone46_01



▪Write TPX3/4/CN3 for sniff.



For sniff both TPX3/4 ant CN3 can be used.



clone46_02cn        WR

clone46_03cn        WR

clone46_04

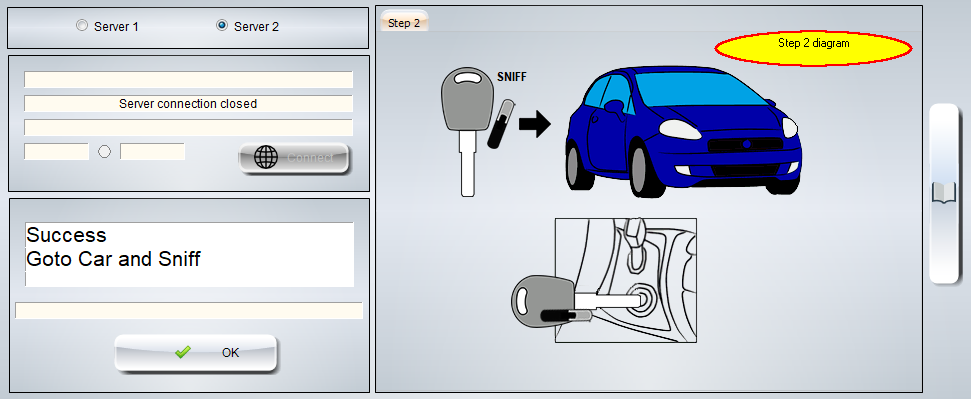

cn3 4



•Perform operations in the car - turn ingition on and off 3-5 times (wait for 2 seconds in each cycle)  - use both original and sniff.
•Click OK

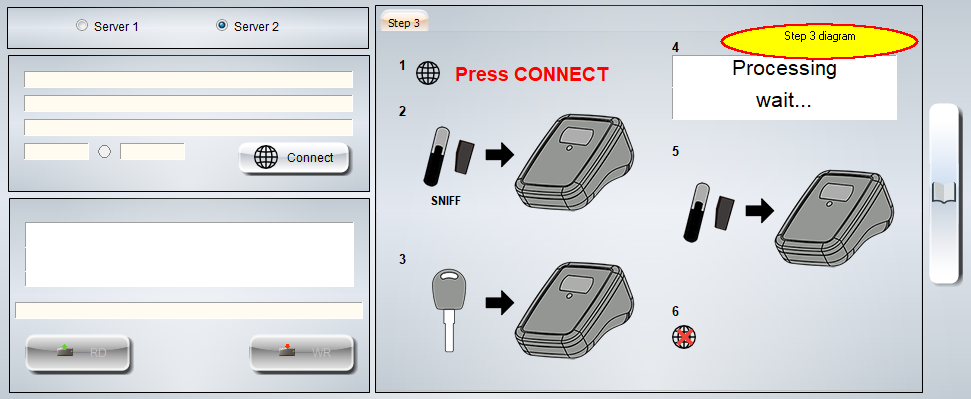

cn3 5



•Click Connect to connect to internet server and start decoding.



Proceed according to instructions from decoder messages window.



▪Read sniff.

clone46_05cn        RD

clone46_07



▪Read original key.

clone46_08        WR



▪Wait while processing.

clone46_09

clone46_10



▪Write destination CN3 transponder.

clone46_11cn        WR

clone46_12





NOTE:

If decoder will not be able to find crypto key repeat all steps again. Its important to repeat decoding with different sniff data.
