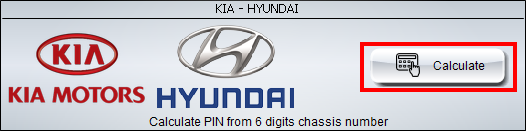

1.KIA-HYUNDAI pin from 6 digits chassis number for the earlier cars befor 2007.

pin kia1

•Click Calculate

pin kia2

•Write data and click OK.

pin kia3



2.NISSAN-INFINITI pin from Siemens ICU label.

pin nissan1

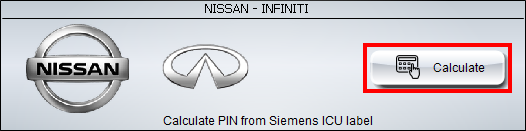

•Click Calculate.

pin nissan2

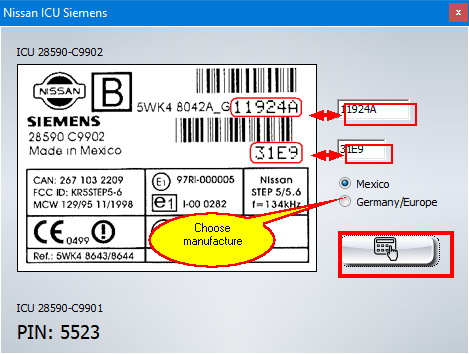

•Rewrite data from label and click Calculate.

pin nissan3

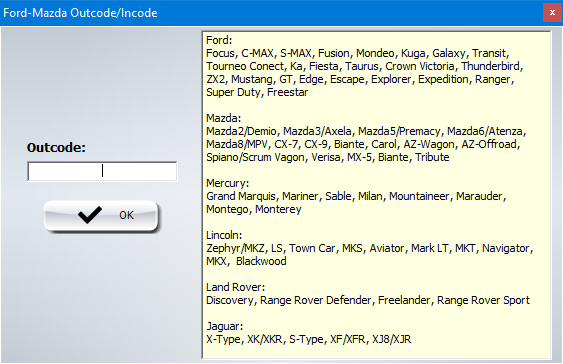

3.Ford-Mazda Incode till 05/2010.

for incode

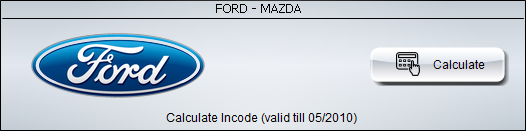

•Click Calculate

ford incode1

•Write data and click OK.

ford incode2

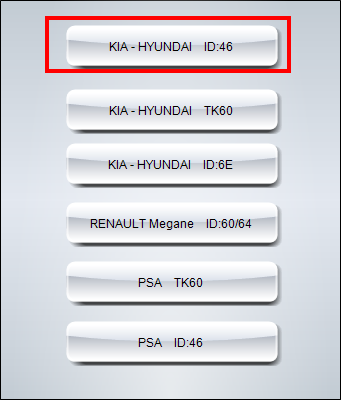

4.KIA-HYUNDAI ID:46 pin from working key.

pin kia 46main pin kia 46

•Put key into base unit .

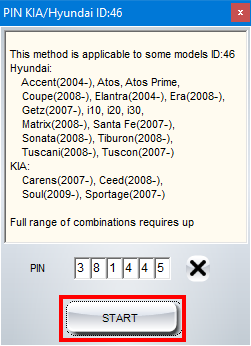

•Click START.

pin kia3

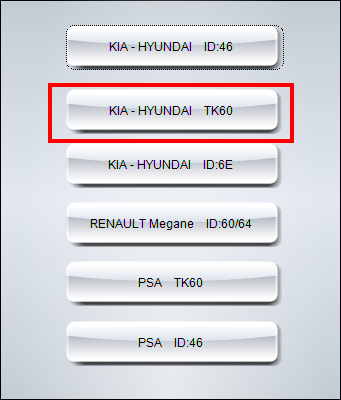

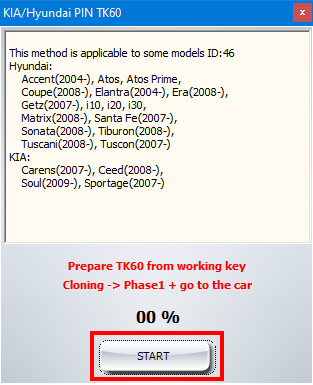

5.KIA-HYUNDAI ID:46 pin using TK60 transponder key.

Calculation is faster then using directly original key.

•Create sniff TK60 transponder from working key (cloning on TK60) and sniff data in the car.
•Put sniff TK60 into base unit .
•Click START.

pin kia tk60 main pin kia tk60

pin kia3



6.KIA-HYUNDAI ID:6E.

pin kia 6E

•Put key into base unit .

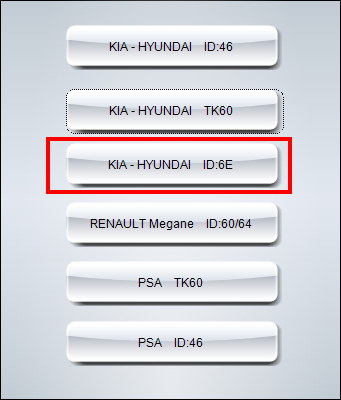

•Click KIA/HYUNDAI ID:6E.

pin kia3



7.Renault Megane pin from key.

pin megane

•Put key into base unit .

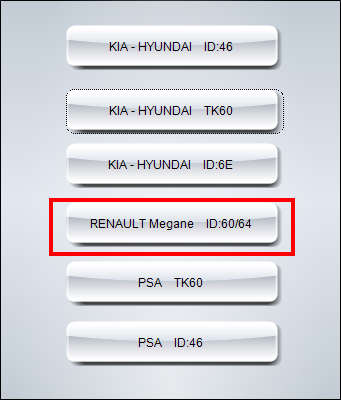

•Click Renault Megane ID:60/64.



According to settings in Setup pin will be calculated:



▪Internet online decoder:



immo 4d 2 immo 4d 3



▪Offline decoder, using PC decrypting tables:



immo 4d table



pin megane 2

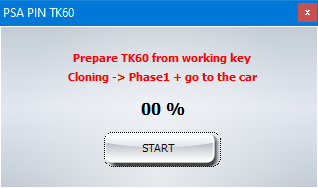

8. PSA (Peugeot-Citroen) pin using TK60 transponder key.
•Create sniff TK60 transponder from working key (cloning on TK60) and sniff data in the car.
•Put sniff TK60 into base unit .
•Click START.

pin psa tk60 main

pin psa tk60

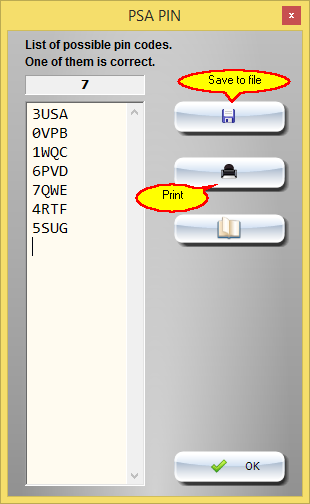

psa tk60 list

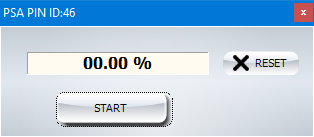

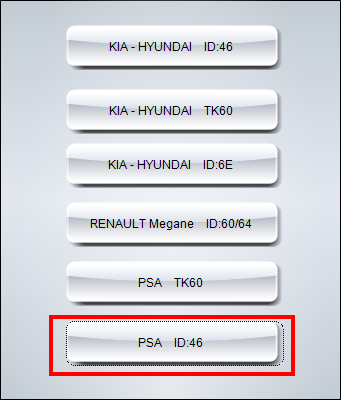

9.  PSA (Peugeot-Citroen) pin using original ID:46 transponder key.



pin psa ID46 main

pin psa ID46



Click START to start then job from the previous incomplete one.

Click RESET to start the new job.

Full range of combinations requires up to 14 hours of time.





psa tk60 list
